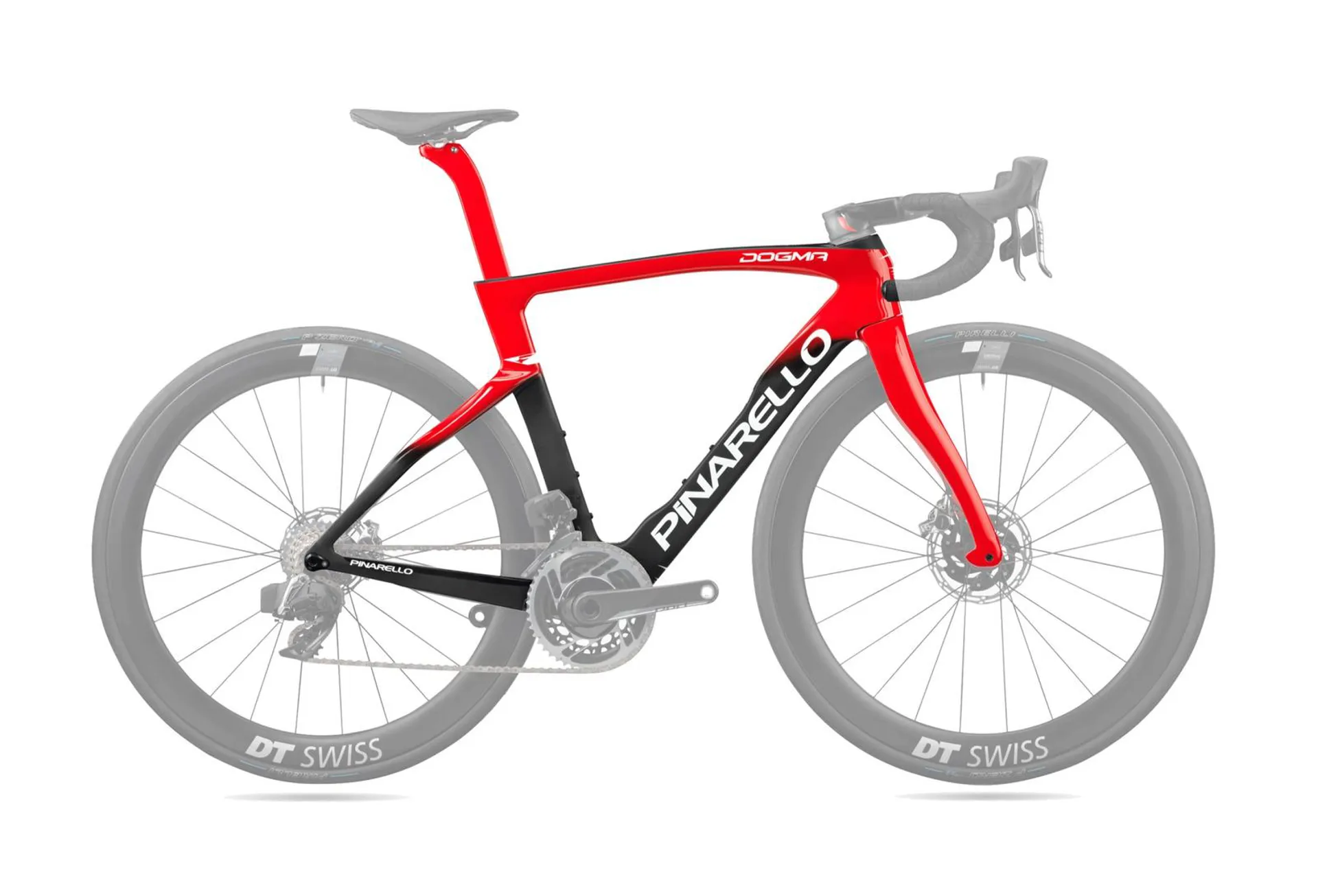

PINARELLO DOGMA F DISC SRAM RED ETAP AXS

£10,600.00 £12,600.00 16% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

It’s our aim at J’s Cycle Shack to provide a returns service that is totally hassle-free for you. If you’re not completely satisfied with an item you may return it within 30 days, as long as the item isn’t fitted or used we’re happy to receive it back for a refund.

To return your item(s):

  1. Put your unused, labelled item for return back in it’s original packaging.
  2. Fill in a Returns Form and include this with the item you are returning in a parcel.
  3. Send the parcel to the following address:

    J's Cycles

    Unit A Kirkgate Commercial Centre

    Chantry Bridge

    Wakefield

    WF1 5DL

    We will be in touch if there are any issues or when your return has been processed.

Returns Shipping

If the item is being returned as a result of our error (damaged, defective, wrong item sent etc), we will refund Royal Mail First Class or Standard Parcel postage costs.

If the item is being returned as a result of a change of mind, purchased the wrong size, item is not suitable, etc… the original cost of the outbound postage will be refunded by us, however the consumer is liable for all return costs incurred.

International Refunds

All refunds are processed in GBP (£). J’s Cycle Shack will not refund any charges made by your bank for currency conversions or any customs charges incurred throughout the shipping/returns process. J’s Cycle Shack will not refund differences caused by fluctuations in exchange rates. Shipping costs will be refunded as outlined in the paragraph above.

Guidelines For The Best Experience

Each returned item should be in it’s original packaging with the manufacturer’s labels attached. Please do not tape or attach labels directly to the retail packaging.

Retail store purchases should be returned to the original place of purchase. If this is not possible then follow our website returns policy and include proof of purchase.

We reserve the right to reject the return of goods which are not returned in accordance with our Returns Policy and we may request that you pay for the shipping of such goods back to you. Our returns policy does not affect your statutory rights.

A deduction will be made if the value of the goods has been reduced as a result of you handling the goods more than was necessary. The extent to which a customer can handle the goods is the same as it would be if you were assessing them in a shop.

Once we receive your goods, we will inspect and process them within 24hrs. Refunds will automatically be issued to the same payment method used to purchase the goods. As soon as your return has been processed by our team we will email you to let you know. In the unlikely event that you don’t receive this email within 10 days of posting your parcel to us, please get in touch with our Customer Service Team through our Contact page or by calling 01977 67999

If your purchase isn’t everything you expected it to be and you wish to exchange an item the simplest and quickest thing to do is place a brand new order for your new item and return the old one to us for a full refund.

Goods That Cannot Be Returned

There are some goods you can’t return if you simply change your mind, including:

  • CDs, DVDs or software if you’ve broken the seal on the wrapping
  • Perishable and other items that deteriorate rapidly such as food
  • Custom Built, tailor-made or personalised goods
  • Underwear and earrings
  • Used goods including footwear which have had cleats fitted

European Online Dispute Resolution (ODR)

For information regarding European ODR, pleaseclick here.

PINARELLO DOGMA F DISC SRAM RED ETAP AXS

Season:2022

Brand:Pinarello

Code:Faxsred

Aerodynamics, weight, geometry, tube thicknesses and profiles, the choice of carbon, all of these factors play a part in the perfect bicycle. There’s an art to finding the right equilibrium, and it’s an art that PINARELLO has always been dedicated to mastering. The new DOGMA F is the purest expression yet of that dedication, the combination of all our experience, taste, instinct, and skill.

This is a bike that is perfect for every type of rider and every terrain, because real-world riders aren’t specialised. You need a bike that can climb and descend with equal flair, attack every corner and make every watt count on the finishing straight.

The DOGMA F is designed to do just that, no matter the circumstances.

Unlike so many other manufacturers, PINARELLO has never made distinctions between aerodynamic bikes and climber’s bikes because that’s not how people ride in the real world. Whether you’re an amateur riding for fun or a professional in a grand tour, every time you go out for a ride you come across varying terrain, and even the biggest climbs are only reached by riding across the plains.




- -265 grams (complete disc frame kit in size 53) - +12% stiffness to movement - +3.2% more aerodynamic (rim) - +4.8% more aerodynamic (disc) - + 1,3 Watt saved at 40 km/h - + 2.6 Watt saved at 50 km/h

AERODYNAMIC INTELLIGENCE: HOW TO GAIN PRECIOUS SECONDSThe DOGMA F12 set an incredible standard for aerodynamic performance, but R&D Pinarello team has managed to shave off important percentage points on the new DOGMA F, translating to precious seconds on the road.

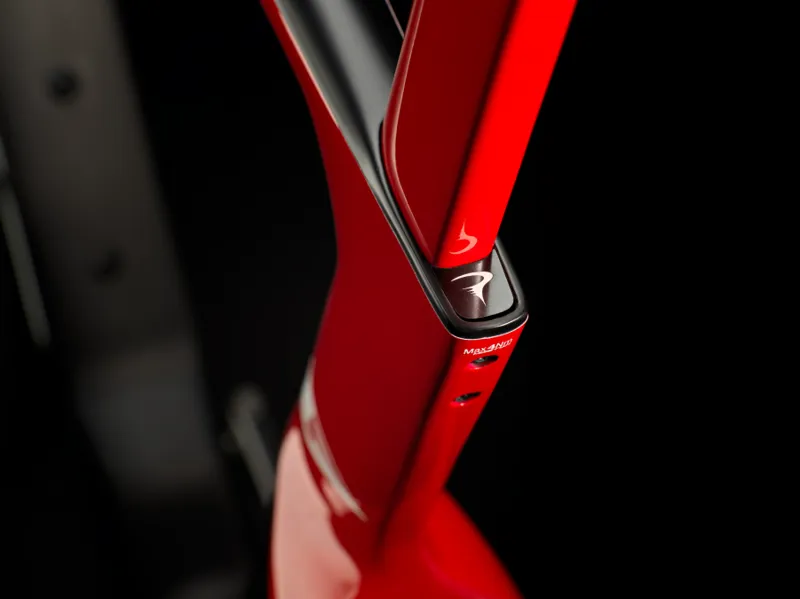

NEW SEATPOST AND TITANIUM SPIDERThanks to a new design and the use of SLM (Selective Laser Melting) titanium from Pinarello partners Materialise, the DOGMA F seat post achieves a significant improvement in weight and aerodynamics.

NEW ULTRALIGHT HEADSET BEARINGSThe state of the art internal cable routing across the whole bike industry. The system allows both to install wireless or electro-mechanical group sets and completely hides cables within bar/stem or integrated handlebar for improved aero performances and protection

YOU DECIDE WHICH BRAKES TO USE!Every cyclist should have the right to choose which brakes to use. The DOGMA will always be developed with the same respect and attention to detail, regardless of whether it’s rim or disc

352 VERSUS 7Using T-shirt sizes to measure the bikes would be an insult to our Italian tradition, to the craftsmen who made frames to measure, like a fine suit. Thanks to 11 frame sizes, 16 handlebar sizes, and 2 seat post sizes, Pinarello can provide 352 combinations so you can find the perfect position on the saddle of your new DOGMA F – compared to the 7 options you’re offered elsewhere

CARBON T1100 1KHigh tensile and high modulus carbon fiber with patented Nanoalloy Technology for extreme performances.

TiCRThe state-of-the-art internal cable routing across the whole bike industry. The system allows both to install wi-fi or electro-mechanical group sets and completely hides cables within bar/stem or integrated handlebar for improved aero performances and protection.

FLATBACK PROFILETruncated aerofoil for aerodynamic advantage, compliant to 3:1 UCI rule. Excellent aero performance and low lateral wind resistance

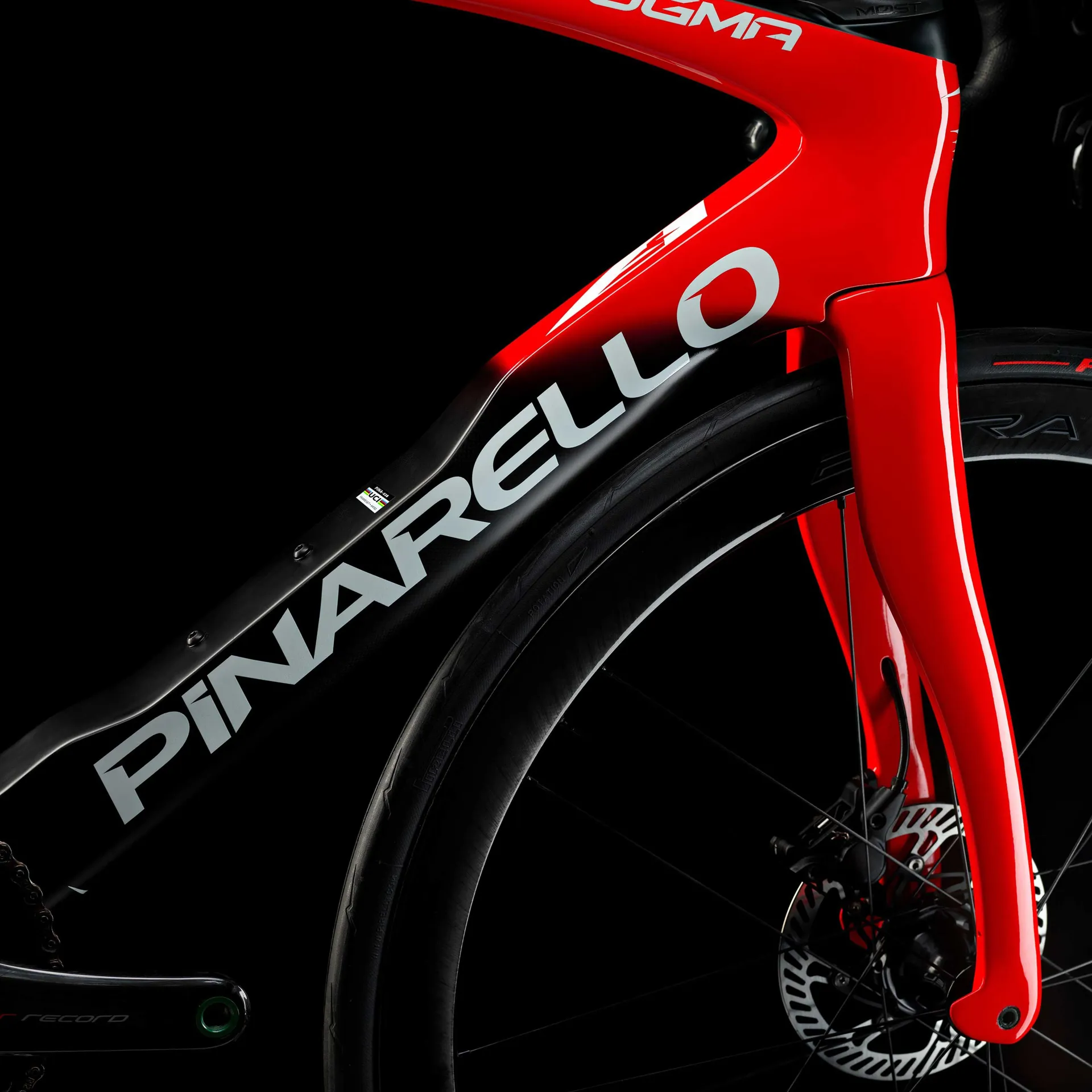

ONDA FORKA distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.

Technical Information

TECNICAL DETAILS

  • FRAME SET

  • FRAME TorayCa T1100 1K Dream Carbon with Nanoalloy Technology, TiCR™ Cable Routing, Italian BB, UCI Approved

  • FORK F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings

  • WEIGHT Disc Brakes version: 6.9kg. Weight in size 53, with DT SWISS ARC1400 50mm profile, w/o pedals and bottle cages/bottles

DRIVETRAIN

  • CRANKSET AND CHAINRINGS SRAM Red ETAP AXS 12S

  • FRONT DERAILLEUR SRAM Red ETAP AXS 12S

  • REAR DERAILLEUR SRAM Red ETAP AXS 12S

  • CASSETTE SRAM Red XG-1290

  • CHAIN SRAM Red 12S

  • BOTTOM BRACKET SRAM Red

BRAKES

  • FRONT BRAKE DISC SRAM Red 2 pistons caliper, 160mm rotor

  • REAR BRAKE DISC SRAM Red 2 pistons caliper, 160mm rotor

COCKPIT

  • INTEGRATED HANDLEBAR MOST Talon Ultra Fast

  • BAR TAPE MOST ULTRAGRIP evo 3mm BLACK

  • SADDLE MOST Linx ULTRAFAST SUPERFLOW L Carbon Large 145mm

  • SEATPOST Pinarello Aero Seatpost with 3D printed Titanium Top Seatclamp and bolts

  • SEAT CLAMP Seatclamp TwinForce, Titanium Bolts

WHEELS AND TIRES

  • TYRES DISC Pirelli Pzero Race 26mm, black 127 tpi Aramid breaker. Max Tyre Size 28mm (width as measured)

  • WHEELSET DISC Fulcrum Speed 40, 700C*

  • AXLES DISC MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal


  • Carbon Toraya T1100 1K Dream Carbon with Nanoalloy Technology
  • Asymmetric frame
  • Onda Fork Dogma F with ForkFlap
  • TiCR (total integrated cable routing)
  • 1.5 upper and lower steerer
  • Italian thread BB
  • Seatclamp Twin Force
  • 3D printed titanium top seatclamp
  • 3XAir two positions option for the second bottle cage (as of 515 and above)
  • FlatBack profile
  • UCI approved
  • Rad System disc brake
  • TA142
  • Disc flat mount max 160mm
  • Max tire 622x28c
  • Weight: 865g Size 530; raw frame (not painted)
Sizing Information
The Pinarello Dogma F Insider's Guide
Professional Opinion
Giving riders a fit almost as tailored as that enjoyed by Bernal, Ganna, Thomas, or Pidcock, their use of the bike is likely to see the new Dogma continue as the world’s most widely lusted after bicycle. Enjoying almost unquantifiable advertising benefit from sitting on the front of the peloton stage after stage, this summer will prove whether this latest Dogma can add another Tour de France win on its first outing. Either way, it’s likely to win Pinarello a few more converts. - Rouler.cc
